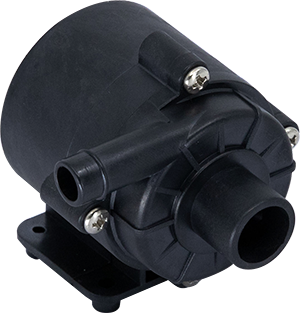

JCM-12(Fixed)
Feature
- The ceramic shaft axis prevents corrosion and increases the product lifespan and safety.
- Cover case designed in sealed structure to prevent leakage from motor axis
- Epoxy molding to prevent leakage via motor wiring
- Low-noise BLDC Pump Motor
BLDC PUMP – General
| Type | Fluid Discharge Method |
|---|---|
| Motor | SENSORLESS MOTOR |
| Pump Housing | Open type |
| Use Conditions | Heating Mat Pump etc. |
| 사Water Supply Type & Temperature | Tap Water Supply and Underground water (except when frozen) |
| Ambient Temperature | -20℃ ~ 40℃ |
| Ambient Humidity | 45% ~ 85% |
Performance
| Voltage | DC 12V |
|---|---|
| Electricity Usage | 3W ~5W |
| Rate Voltage while loaded | 100mA ~ 500mA |
| Volume Flow | 0.5 ℓ/min ~ 3.0ℓ/min |
| Rotation | 700 RPM ~ 3,500 RPM (wile loaded ) |
| Head | 0.5M ~ 2.8M |
| Energy Saving Classification | Type F (150℃) |
| Noise Level | Less than 27dB while loaded |

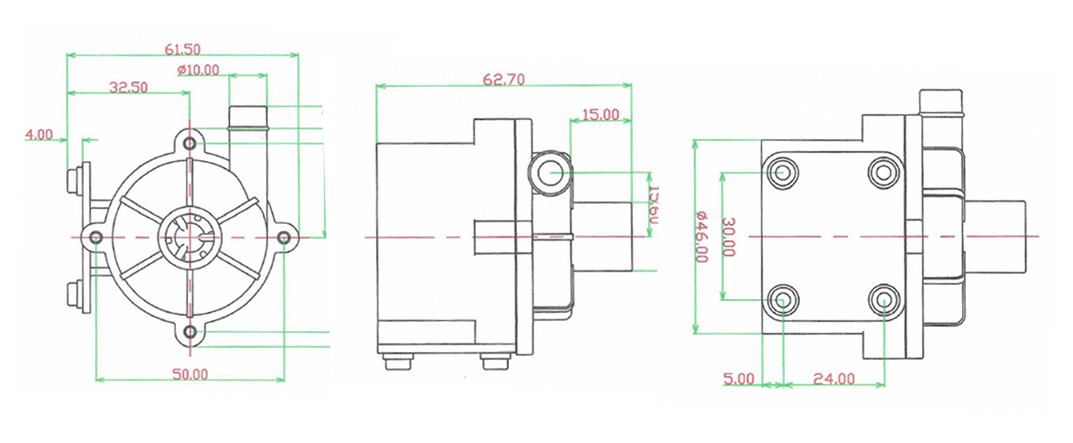

Dimensions
BLDC Pump Motor Control Method
| Classification | Control Method/Specifications | ||
|---|---|---|---|
| PWM Control | VSP Control | ||
| PWM Input Voltage (VBB) | DC4V~DC18V | DC 12V | DC 12V |
| Input Voltage | MAX 0.8A | MAX 0.8A | MAX 0.8A |
| FG Output | 2 pluse | 2 pluse | 2 pluse |
| PWM Duty | 0% ~ 100% | – | – |
| PWM Frequency | 20 KHz | – | – |
| PWM Input Voltage | 0V~5V | – | – |
| Motor Air Function | – | Air Suction Capacity | – |
PWM/VSP Control Panel Circuit Wiring
DC 12V No-Gear Control Circuit Wiring
